Author: Yash Highvoltage

Transformer Bushing Parts by Yash Highvoltage Ltd.: Ensuring Power Transmission Reliability

Posted on | by Yash Highvoltage

Yash Highvoltage Ltd. is pleased to offer its selection of Transformer Bushing Parts, which are engineered to improve power transmission systems’ dependability and effectiveness.

Reliable Performance:

Our transformer bushing parts are designed to endure harsh climatic factors and high voltage strains, guaranteeing continuous power transfer in a variety of applications.

Exceptional Quality:

Here at Yash Highvoltage Ltd., we put quality first. Our bushing parts are put through a thorough testing process to ensure long-term performance and durability while meeting the highest industry requirements.

Customized Solutions:

We are aware of the distinctiveness of each power transmission system. That’s why, whether for new installations or retrofitting old systems, we provide personalized solutions made to match unique requirements.

Technical Expertise:

Our team of experts, who have years of experience and technical proficiency in high-voltage engineering, is committed to providing creative solutions that maximize system performance.

Commitment to Sustainability:

Yash Highvoltage Ltd. is dedicated to environmental responsibility and sustainability. Our transformer bushing components help create a more environmentally friendly future by being developed with energy efficiency in mind.

Partner with Us:

Discover the dependability and effectiveness of the Transformer Bushing Parts from Yash Highvoltage Ltd. Join together with us to improve your power transmission system’s efficiency.

Yash Highvoltage Ltd.: OIP Condenser Bushings – The Industry Standard for Reliable High-Voltage Transmission

Posted on | by Yash Highvoltage

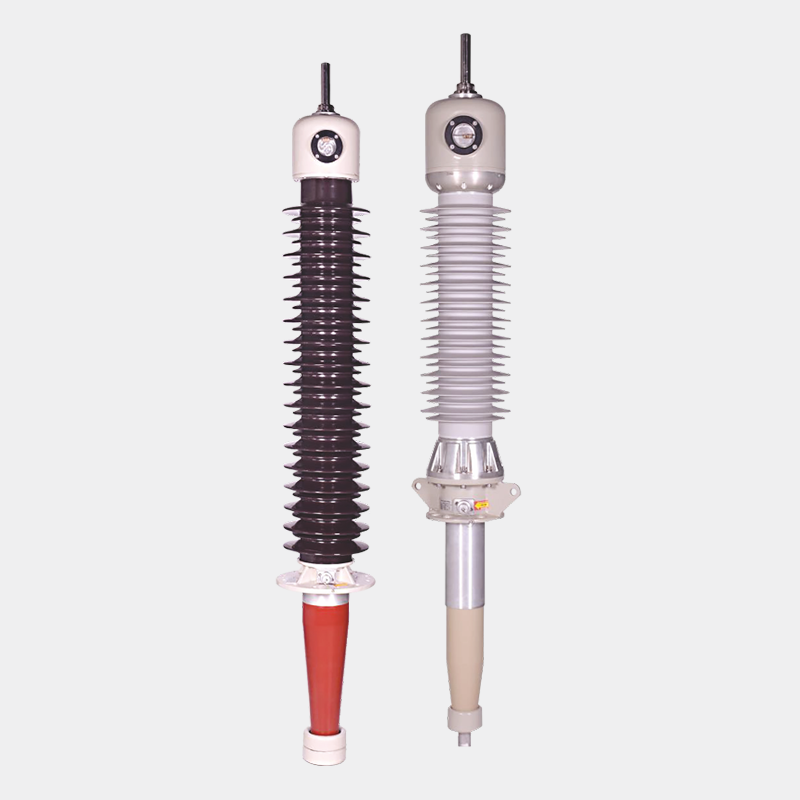

The most reliable high-voltage transmission solution in the world, OIP (Oil-Impregnated Paper) condenser bushings are made by Yash Highvoltage Ltd., a top manufacturer in the industry. For outstanding performance, our bushings are painstakingly made using aluminum layers and oil-impregnated Kraft paper. To satisfy your unique requirements, we provide a large selection of voltage and current ratings, silicone or porcelain insulator alternatives, and connection methods. For proven dependability, all of our bushings undergo extensive testing to satisfy international standards (IEC/IEEE).

Rated Voltage: 24 kV – 245 kV (IEC) / 25 kV – 230 kV (IEEE) Rated Current: 400 A – 3150 A Applications: Transformer Outdoor Standards: IEC 60137: 2017 / IEEE C57.19.00/01

Contact Yash Highvoltage Ltd. today for high-quality, reliable OIP Condenser Bushings.

Pioneering Oil Impregnated Paper (OIP) Condenser Bushings for High Voltage Transmission

Posted on | by Yash Highvoltage

With our tried-and-true Oil Impregnated Paper (OIP) Condenser Bushings, Yash Highvoltage Ltd. is still at the forefront of the high voltage transmission sector. These bushings are the cornerstone of performance and dependability, and they are widely used in the high voltage transmission industry worldwide.

Handcrafted with precision, these OIP Condenser Bushings include Kraft paper firmly twisted around a conductor. This concept uses intermediary layers of aluminum foil to create a highly graded capacitive arrangement. Moisture is efficiently eliminated by a methodical heat and vacuum drying procedure, guaranteeing the best possible insulation. The bushings are then meticulously saturated with processed transformer oil, which improves both their performance and longevity.

Yash High Voltage Ltd.: Empowering Global Power Solutions

Posted on | by Yash Highvoltage

At Yash High Voltage Ltd., we work hard to go above and beyond by providing solutions as well as equipment that enable companies and utilities to prosper in a constantly changing environment. Our performance history speaks for itself; our bushings constantly deliver unmatched longevity and efficiency.

Come help us shape power engineering’s future, where quality, innovation, and dependability come together to show the way to effective and sustainable energy solutions. Discover the brilliance of Yash High Voltage Ltd. and the game-changing influence of our cutting-edge technology as they power a better tomorrow.

HIGH CURRENT BUSHING

Posted on | by Yash Highvoltage

Our cutting-edge High Current Bushings have been precisely built to give superior performance in Generation station transformer applications both in India and on a worldwide scale, embracing customer-focused innovation. Our bushings are designed to withstand the rigors of harsh environments and are available in voltage classes ranging from 24 kV to 52 kV, with current ratings ranging from 4000 A to 25000 A. Their sturdy structure provides durability, making them excellent for demanding operational circumstances. Know more

OIP Condenser Bushings by Yash Highvoltage Ltd.

Posted on | by Yash Highvoltage

The OIP Condenser Bushings from Yash Highvoltage Ltd. are the pinnacle of dependability, effectiveness, and creativity. These bushings continue to power various industries as a symbol of the company’s commitment to quality, guaranteeing a steady supply of electricity and the smooth operation of essential electrical systems. The OIP Condenser Bushings from Yash Highvoltage Ltd. are at the forefront of contemporary electrical engineering solutions when it comes to exceptional performance and uncompromising reliability.

0

What is a Bushing in a Transformer?

Posted on | by Yash Highvoltage

A bushing is an essential part of a transformer that serves as a secure connection between the high-voltage parts of the transformer and outside machinery like power lines, circuit breakers, or other electrical devices. Bushings are essential in enabling the movement of electrical power across various voltage levels while providing insulation and risk mitigation.

Know About the Transformer Bushing Designs and Types

Posted on | by Yash Highvoltage

The design of a transformer bushing is determined by the bushing’s type, voltage rating, and intended use. Solid bushings typically have a straightforward design, with the conductor enclosed by a single piece of insulating material. The more complicated capacitance-graded bushings include a number of conductive layers incorporated into the insulating material. A reservoir of oil surrounds the conductor in oil-filled bushings, helping to insulate and keep the bushing cool. A gas chamber surrounds the conductor in gas-insulated bushings, providing insulation and preventing arcing. The insulating material in inductive bushings contains a coil of wire that generates a magnetic field that protects the conductor from the electric field.

know-about-the-transformer-bushing-designs-and-types

RIP/RIS CONDENSER BUSHINGS

Posted on | by Yash Highvoltage

DRY TYPE Resin Impregnated Paper (RIP) / Resin Impregnated Synthetic (RIS) Condenser Bushings are oil-free transformer bushings that are renowned for their groundbreaking performance. The insulation is built directly on the conductor and is made of premium crepe paper wound on the conductor in the case of RIP bushings or premium synthetic film in the case of RIS bushings. For the best electromagnetic field control, conductive grading layers are embedded during the paper/synthetic wrapping process to create a capacitive core. The wound core is then impregnated with special grade electrical application resins following a process of heating and vacuuming to create a completely dry RIP/RIS active part solution.

Insulation : Resin Impregnated Paper / Synthetic

Application : Transformer – Outdoor

Type : Oil to Air

Insulator : Hollow Composite / Silicon

Rated Voltage : 24 kV ~ 245 kV

Rated Current : 400 A to 6300 A

Standard : IEC 60137:2017
